Ø28mm PCO1810 Neck

Product overview

Ø28mm PCO1810 Neck

Product overview

The 28 mm PCO1810 neck finish is used for carbonated beverages and other compatible bottles. Confirm pressure performance, cap fit and line settings for the final package. Multiple preform configurations are available in this neck family.

Technical specifications

Weight	Neck finish	Length	Diameter	Grade
13.25 gr	28mm-PCO1810	74.40 mm	19.00 mm	A
14.15 gr	28mm-PCO1810	80.00 mm	19.80 mm	A
17.00 gr	28mm-PCO1810	90.00 mm	19.50 mm	A
19.00 gr	28mm-PCO1810	86.00 mm	22.20 mm	A
21.00 gr	28mm-PCO1810	92.00 mm	20.40 mm	A
22.00 gr	28mm-PCO1810	95.00 mm	22.20 mm	A
23.00 gr	28mm-PCO1810	95.00 mm	22.20 mm	A
26.50 gr	28mm-PCO1810	115.00 mm	24.00 mm	A
27.50 gr	28mm-PCO1810	116.00 mm	24.85 mm	B
31.50 gr	28mm-PCO1810	130.00 mm	24.22 mm	B
33.00 gr	28mm-PCO1810	130.00 mm	24.22 mm	B
34.00 gr	28mm-PCO1810	130.00 mm	25.30 mm	B
36.00 gr	28mm-PCO1810	130.00 mm	25.30 mm	B
37.00 gr	28mm-PCO1810	150.00 mm	25.00 mm	B
37.00 gr	28mm-PCO1810	129.00 mm	25.60 mm	B
40.00 gr	28mm-PCO1810	150.00 mm	25.00 mm	B
41.00 gr	28mm-PCO1810	128.00 mm	25.73 mm	B
41.00 gr	28mm-PCO1810	138.00 mm	26.51 mm	C
42.00 gr	28mm-PCO1810	138.00 mm	26.51 mm	C
44.00 gr	28mm-PCO1810	140.00 mm	27.22 mm	C
45.00 gr	28mm-PCO1810	144.00 mm	27.18 mm	C
52.00 gr	28mm-PCO1810	148.00 mm	26.98 mm	C

Grade A

Grade B

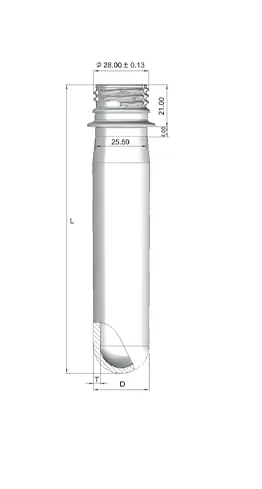

Grade C
